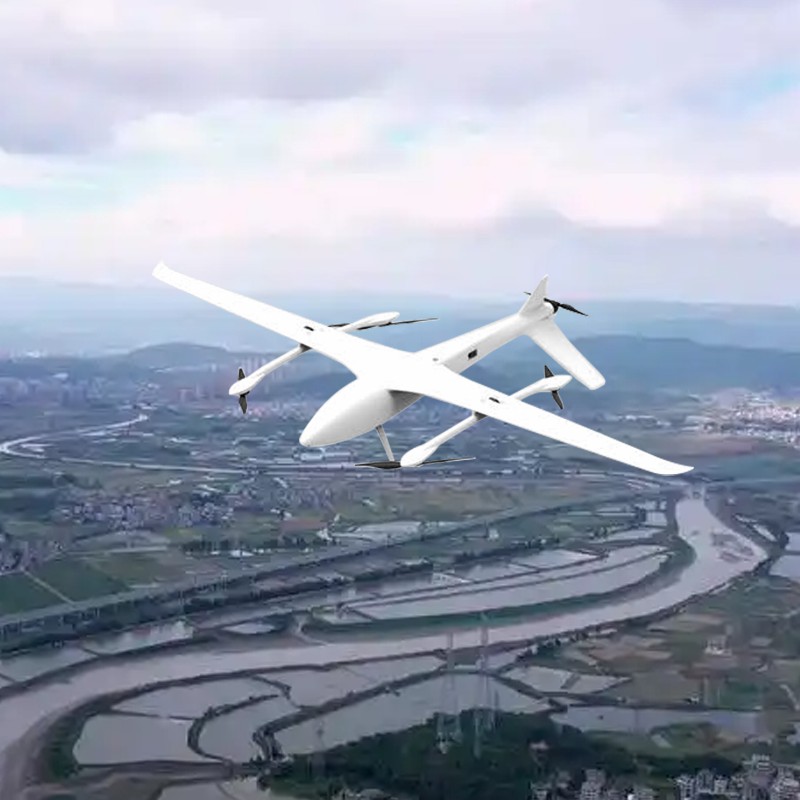

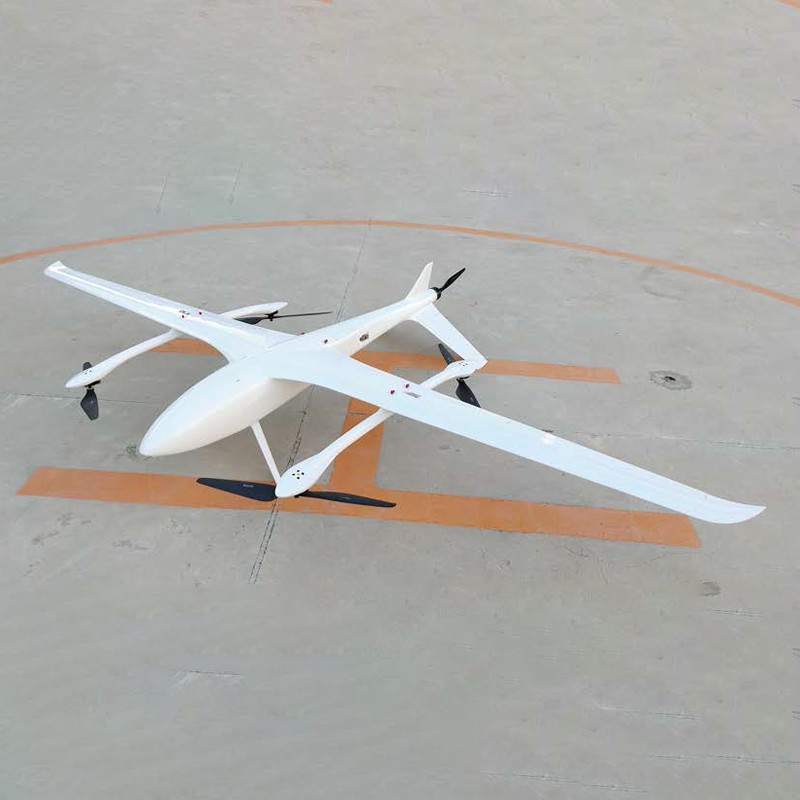

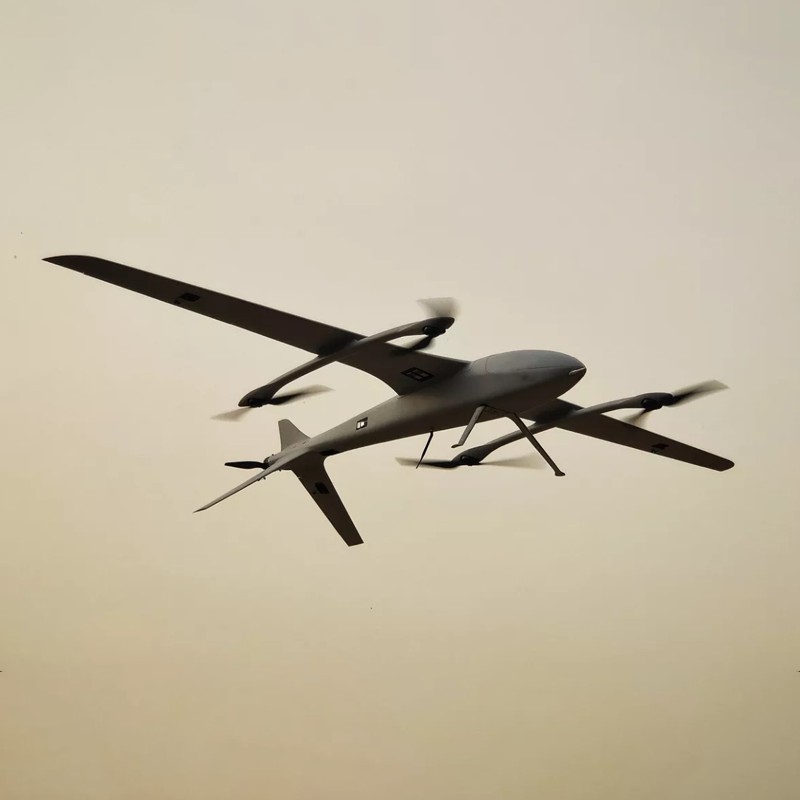

The FY-G02 pure electric vertical takeoff and landing fixed wing drone adopts an innovative forward research and development design concept, integrating the advantages of long endurance of fixed wings and flexible vertical takeoff and landing. The entire fuselage is made of aviation carbon fiber composite material, which is lightweight, high-strength, and has a long operating time. Pneumatic layout combined with intelligent flight control system can achieve stable takeoff, landing and cruising in complex environments. It supports quick replacement of task modules to meet the needs of multiple fields such as inspection and surveying. The whole drone has good protective performance, adapts to working environments such as high altitude and low temperature, and provides intelligent operation solutions for industry users.
Product Details
Core advantages
Breaking through the boundaries of traditional drone design, adopting a tail push design architecture to perfectly balance flight time and maneuverability requirements. The aircraft body is manufactured using aerospace grade composite materials, which significantly reduces its own weight while ensuring structural strength, leaving sufficient space for the load. The unique aerodynamic shape has been optimized through thousands of fluid dynamics simulations to achieve energy conversion efficiency. Combined with an intelligent power distribution system, the flight attitude can be dynamically adjusted according to task requirements.
Performance Highlights
Equipped with a self-developed high-density energy system, the battery pack achieves efficient and stable output through intelligent temperature control technology, and can maintain ultra long battery life even under full load operating conditions. The whole machine adopts a modular design concept, and the mission module supports quick disassembly and switching, which can flexibly adapt to various loads such as optical pods and surveying. The intelligent flight control system integrates multiple redundancy guarantee mechanisms to enhance the safety of operations in complex environments.
environmental adaptation
Specially designed for harsh working environments, the body sealing process meets industrial protection standards and can resist erosion from sand, dust, and humid environments. Has a certain degree of wind resistance.
Application scenarios
Meet the diverse needs of smart city 3D modeling, inspection, and more. Design supports the installation of professional level surveying equipment to obtain high-precision geographic information data. Agricultural users can choose a multi-spectral imaging system to achieve long-term monitoring of large-scale farmland.
Maintain security
Adopting standardized interface design, the core components support quick replacement and maintenance. The intelligent diagnostic system monitors equipment status in real-time and provides accurate maintenance prompts. The whole machine has passed strict reliability testing, and the design life level of key components is high. Provide customized service solutions and develop specialized task modules based on user needs.
Product Features
Fully composite lightweight fuselage structure
Multiple security guarantee mechanisms for intelligent flight control
Modular Load Rapid Switching System
Strict environment, stable operation ability
Multi scenario adaptation solution for ultra long flight time
Product parameters
FY-G02 parameters |
|
Length |
2263mm |
Height |
552mm |
Wingspan |
4005mm |
Material |
Aviation carbon fiber composite materials |
Load |
≤10kg |
Safe takeoff weight |
≤30kg |
Safe level flight speed |
20~33m/s |
cruising speed |
24m/s |
Endurance |
2h @ Load capacity 10kg |
4h @ 5kg load capacity |
|
voyage |
≤346km |
Practical ceiling |
4500m |
operation temperature |
-20℃~45℃ |
Wind loading |
Level 5 takeoff and landing |
Flight Level 6 |
|
protection grade |
IPX4 |
The above parameters are for reference only. Detailed product parameters are subject to actual delivery. |
