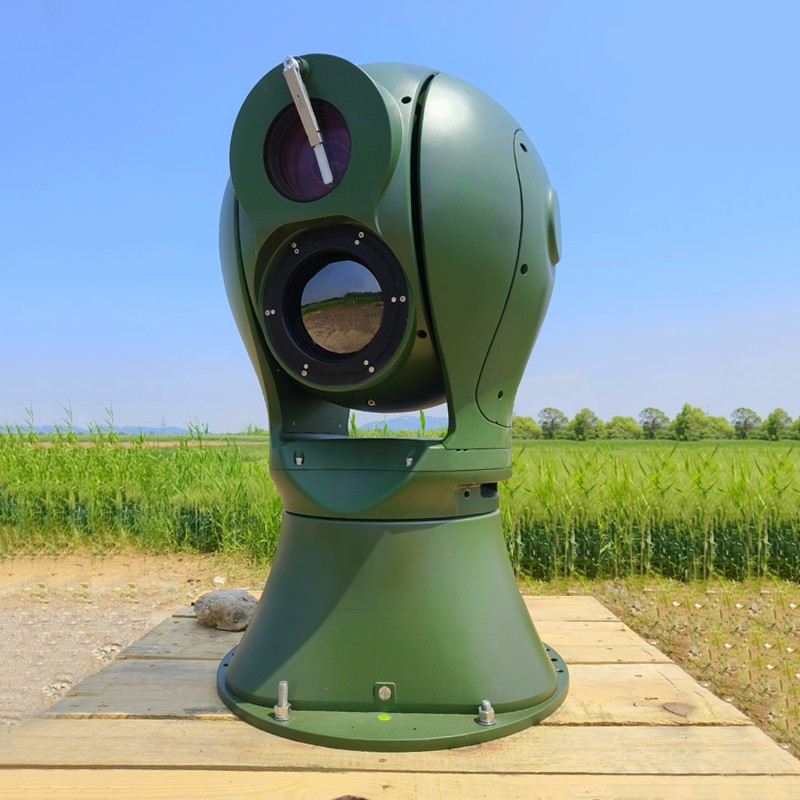

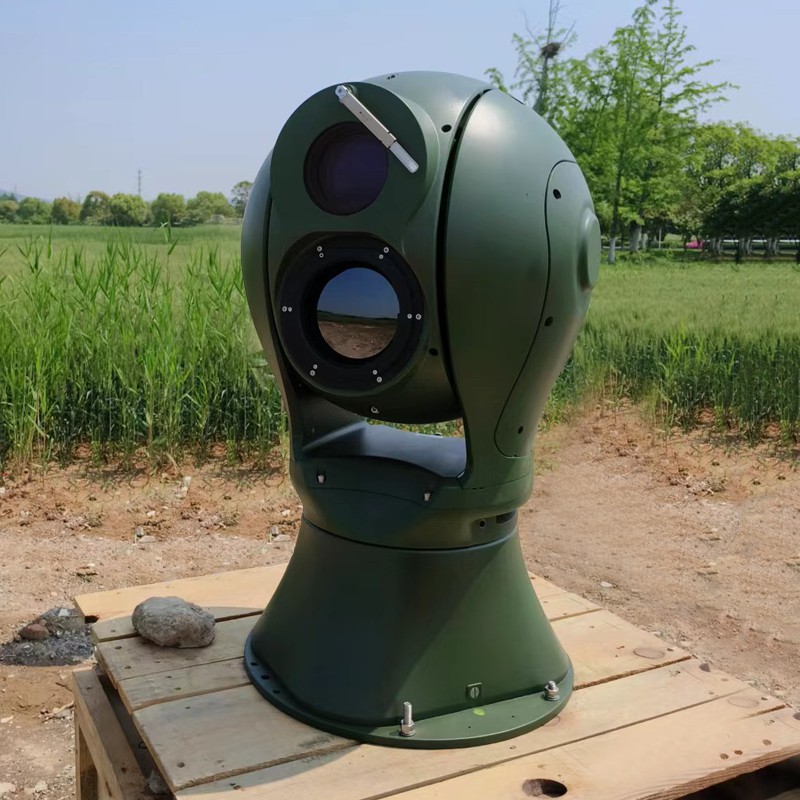

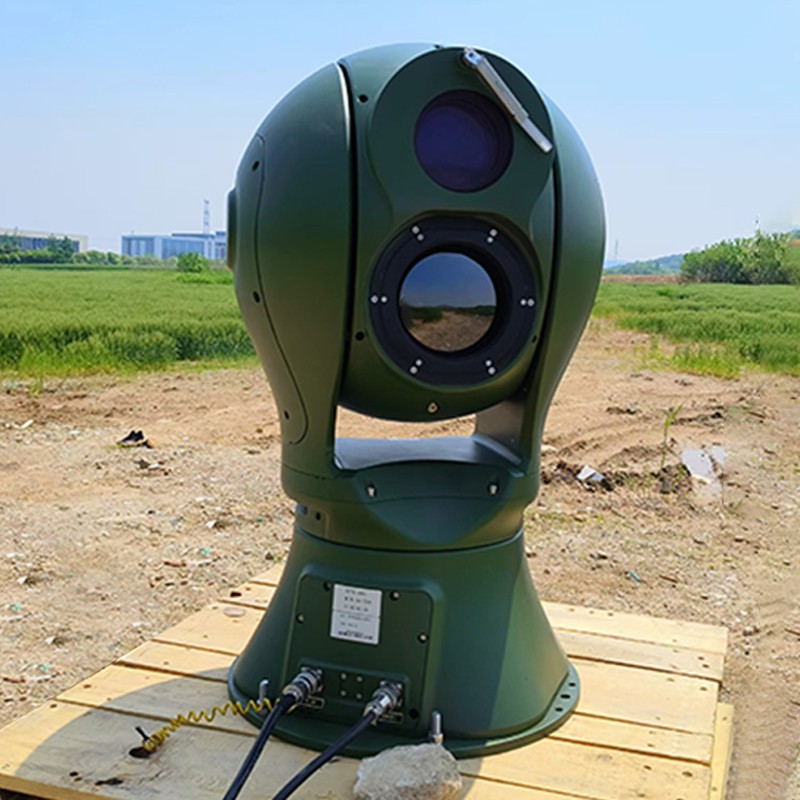

The GD-06 UAV photoelectric tracker adopts standardized and modular design technology, with good scalability. It comprehensively uses two passive optical sensors, visible light cameras and infrared thermal imagers, and has an embedded automatic tracking module to achieve multi-channel image encoding, target detection, discovery, recognition, locking, and tracking functions under the same core.
Product Features
Adopting advanced turntable transmission mechanism to enhance seismic performance and ensure stable and clear images;
Adopting standardized and modular design techniques, with good scalability;
Adopting sealed design technology is beneficial for long-term use in harsh environments;
Application of device self checking technology and abnormal working status alarm, independent heat dissipation channel, good heat dissipation effect;
It can effectively detect and capture targets regardless of day, night, or adverse weather conditions.
Product Parameters
|
Indicators |
||||
|
Maximum tracking distance (Under favorable weather conditions, for a 0.35 × 0.35m drone) |
thermal imaging |
visible light |
||
|
>2km |
>3km |
|||
|
Tracking mode |
Manual, automatic, radar/spectrum linkage |
|||
|
Servo performance |
Maximum speed in azimuth: ≥ 90 °/s, maximum pitch speed: ≥ 90°/s； Maximum acceleration in azimuth and elevation: ≥ 100°/s2 |
|||
|
Power Supply |
AC220V，50Hz |
|||
|
Size |
575mm×475mm×655mm |
|||
|
Weight |
≤80kg |
|||
|
Surveillance scope |
Direction 0-360 °; Pitch -45 °~+90 ° |
|||
|
working temperature |
-40℃～+60℃，90%±3% |
|||
|
Infrared thermal imaging |
||||
|
detector |
Uncooled focal plane VOx detector |
|||
|
pixel |
1280×1024 |
|||
|
Sensitivity (NETD) |
Better than 50mk |
|||
|
Working band |
8-14um long wave infrared |
|||
|
focal length |
30-300mm, continuously variable magnification |
|||
|
focusing |
Manual, automatic |
|||
|
image enhancement |
SDE digital detail enhancement function |
|||
|
Electronic amplification |
2X, 4X |
|||
|
correcting |
Automatic, manual, background correction |
|||
|
Image module |
Hot white, hot black |
|||
|
Parameter adjustment |
Brightness, contrast, AGC automatic control |
|||
|
Start time |
≤20s |
|||
|
High definition visible light |
||||
|
detector |
CCD， Target surface 1/1.8 ", color to black |
|||
|
resolving power |
1920 × 1080.2 million |
|||
|
Interface and video format |
H. 264 video compression, IP network output |
|||
|
illumination |
Minimum 0.002lux |
|||
|
focal length |
22.2mm~755mm, infrared corrected electric continuous zoom lens, automatic focusing |
|||
|
Field of view angle |
18.12°×13.48°～0.54°×0.41° |
|||
|
lens control |
Electric zoom, manual/automatic focusing, automatic aperture |
|||
|
Enhanced fog penetration |
Optical and electronic dual fog transmission |
|||
|
Servo turntable |
||||
|
Rotation speed |
Horizontal 0.01 °~90 °/S; Pitch 0.01 °~90 °/S (continuously variable speed) |
|||
|
acceleration |
Horizontal 100 °/S2; Pitch 100 °/S2 |
|||
|
Rotation angle |
Horizontal range of 0-360 °; Pitch -45 °~+90 ° |
|||
|
Preset position |
200 |
|||
|
Cruise scanning function |
Equipped with multi-point preset cruise control and adjustable cruise speed |
|||
|
Bearing method |
Shelf load |
|||
|
Transmission mode |
Servo motor direct drive |
|||
|
positioning accuracy |
0.02° |
|||
|
Embedded automatic tracking module |
||||
|
Video interface |
Support visible/infrared video switching and tracking |
|||
|
Video format |
Composite video, 1Vp-p, 625/525 lines, CCIR，PAL，NTSC |
|||
|
communication interface |
1 RS232 configuration interface, 1 RS232 motor drive interface |
|||
|
object detection |
Capable of detecting multiple and single targets |
|||
|
Tracking function |
Built in multiple tracking algorithms and supporting multi-target detection and tracking; |
|||
|
Locking and Recapture Algorithm for Transient Loss of Intelligent Targets |
||||
|
control interface |
||||
|
network interface |
Be connected to the local LAN through RJ45 Ethernet port to share high-definition video on the network |
|||
|
interface protocol |
Pelco-D, P protocol, 2400/4800/9600/19200bps, |
|||
|
Support ONVIF protocol |
||||
|
Interface style |
Aviation waterproof plug |
|||
|
Environmental Indicators |
||||
|
working temperature |
-40℃～+60℃ |
|||
|
Storage temperature |
-45℃～+65℃ |
|||
|
Humidity |
<90% |
|||
|
anti-seismic |
0.2g（GB/T15211—2013.5.4） |
|||
|
Impact resistance |
15g（GB/T15211—2013.5.3） |
|||
|
Lightning surge protection |
Power supply 4000V, communication video signal 2000V |
|||
|
Salt spray prevention |
When the PH value is 6.5~7.2, the surface does not change after 48 hours of continuous spray |
|||
|
Protection level |
IP66 |
|||
|
The above parameters are for reference only. Detailed product parameters are subject to actual delivery. |
||||
